Interactive Dispiay Leader
2 Years
| Ask Lasest Price | |
| Brand Name : | huaxin |
| Model Number : | ESHX043WV0045B-R-B |
| Certification : | ISO9001 |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability : | 200K Sets / Month |
| Delivery Time : | 6~8 Working Days |
In Stock 4.3 inch 800*480 Resolution IPS Glass RGB 24bits interface 4.3" TFT LCD Module
Product Description
4.3 inch 480x800 Resolution TFT LCD display with 24bits RGB interface. This 4.3 inch color TFT LCD display with capacitive touch panel and support to drive by ST7701SN driver IC. This LCM size is 104*61.96*3.33mm and active area is 93.6*57.16mm.
and operating temperature is -20℃~70℃, storage temperature is -30℃~80℃.

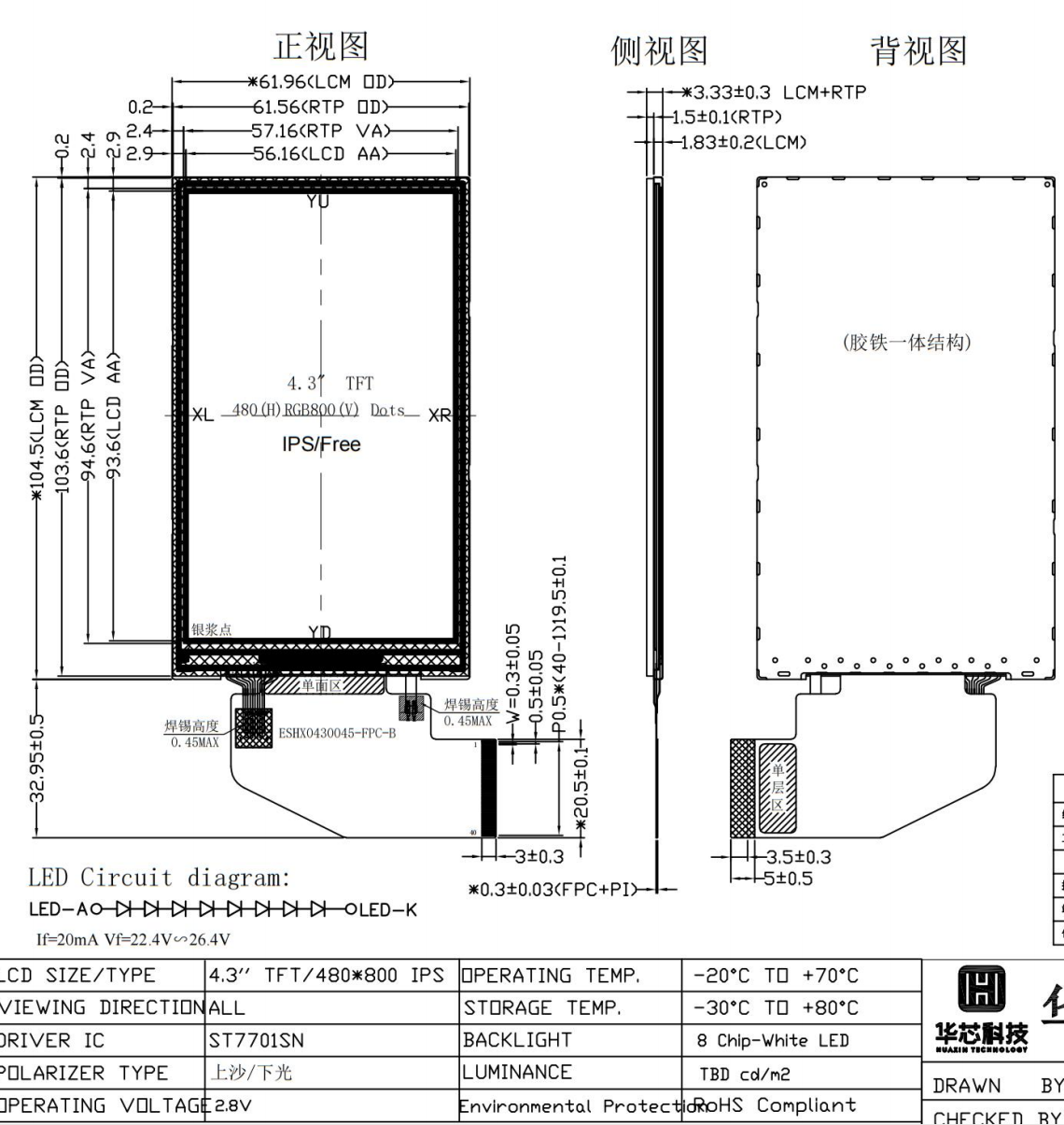

Product Picture
Company Profile
huaxin was established in 2019 , the main products of TSD are color TFT (0.96 inch to 32 inch), capacitive touch panel and resistive touch panel, monochrome LCD&LCM, character dot matrix, segment LCD, covering TN, HTN, STN, FSTN, VA, etc., integrating COG, TAB , COB and other technologies in one.
Team Source Display factory has passed ISO9001, ISO14001, IATF16949certification, providing customers with high-quality LCD display.
FAQ
Q: Do you have your own factory? are you a LCD display manufacturer?
A: We are a LCD display manufacturer and
Q: We need 4.3 inch LCD display with MCU interface, do you have LCD solution for this?
A: Yes, we support to add a SSD1963 driver IC on the FPC of 4.3 inch LCD display to change into MCU interface.
Q: Do you support to customize a logo on the capacitive touch panel?
A: Yes, we support to customize it, pls send us your logo design.
Q: How many pcs sample do you support to test first? and do you have MOQ?
A: We support 1-20 pcs sample to test first, and then for mass production, the MOQ of this 4.3 inch LCD display is 1K.
Q: What payment method do you support for sample? what's the lead time for sample?
A: For sample, we support pay by paypal, CC and T/T. The lead time for sample is 1-2 weeks.
|
|
